Microsoft PictureIt Vertical Image Card Printing Epson
Step 4 - Epson Custom Paper Size Setup
The Epson driver dialog
box now appears. Most recent driver versions look like this in
Advanced Mode. If you are in Basic mode, look for a button near
the bottom right to get to this screen.
Older drivers will look different. The
principles will be the same, though.
Find the drop down menu that has paper
sizes. Look near the bottom of the list for a selection called
User Defined. Click on it.
This dialog will appear.
Check the image at right for the order
you will follow to make a custom paper size:
Using the chart below:
1) Fill in paper width
2) Fill in paper height
NOTE! The units of
width and height are in .01 inches! Make sure to keep this in
mind when entering the dimensions. See at right »»
Paper Size
Height
Width
7x10
10"
7"
6.25x9
9"
6.25"
8x9 Pano
900
800
5.5x8.5
8.5"
5.5"
3) Name your size - call it something
that is easily recognizable
4) Click the Save button
5) Click OK
You now have a permanently saved custom
paper size that will appear in your list of paper sizes.

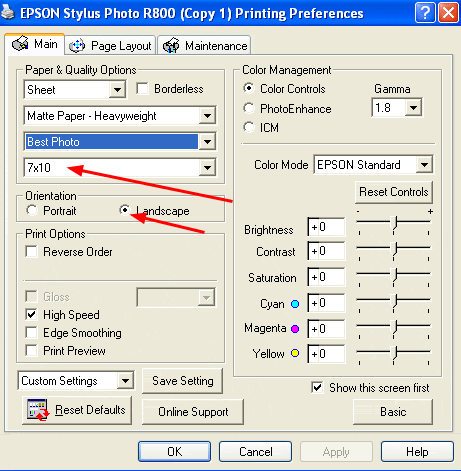

After saving your custom size and clicking
OK, you are back to this menu (or one similar).
Make sure the new paper size is selected
in the paper size menu, and click on Landscape orientation.
Give all settings a second check for accuracy
and click OK.
You will now go back to the PictureIt screen
where you can now click PRINT.
